8.2V Metal Small Proximity Switch Explosion Proof 1MM Detection Distance NO NC NO+NC

Name: 82V Metal Small Proximity Switch Explosion Proof 1MM Detection Distance NO NC NONC
Brand: Winston/OEM
Price: 1 USD

Quality 8.2V Metal Small Proximity Switch Explosion Proof 1MM Detection Distance NO NC NO+NC for sale

Brand Name : Winston/OEM

Model Number : AM8

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

OEM : YES

ODM : YES

Aviation connector : YES

Output state : NO/NC/NO+NC

Condition : Original new

Protection grade : IP67

Material : Nickel-Plated Brass

Load resistance : 1KΩ

Wording temperature : -20℃~70℃

Rated voltage : 8.2V

Contact Now

8.2V Metal Small Proximity Switch Explosion Proof 1MM Detection Distance NO NC NO+NC

Technique parameter

AM8 Safety Explosion-Proof Proximity Switch	Flush	Detection Distance			1mm

		DC6-36V	NPN	NO

				NC

				NO+NC

			PNP	NO

				NC

				NO+NC

			Two Wire System	NO

				NC	AM8-3001LB

		AC90-250V	Controllable Silicon	NO

				NC

				NO/NC

			Relay output

	Non-Flush	Detection Distance			2mm

		DC6-36V	NPN	NO

				NC

				NO+NC

			PNP	NO

				NC

				NO+NC

			Two Wire System	NO

				NC	AM8-3002LB

		AC90-250V	Controllable Silicon	NO

				NC

				NO/NC

			Relay output

Features:

1 . Low-voltage power supply
2 . Micro-current output
3 . Small volume
4 . Long service life
5 . Protection structure IP67(IEC standard)

Safety Explosion-proof Proximity Switch

Namur sensor, also called safety explosion proof proximity switch, is made according to NAMUR and DIN 1923, measured and designed as per chemical industry standard.

With low-voltage power supply,micro-current output,small volume and other advantages.Namur sensors can be applied for special places with requirements of explosion proof.

Model explanation of proximity switch

LM 18 30 05 N A □ / L
—— —— - —— —— —— —— —— ——
1 2 3 4 5 6 7 8

Switch category	Output form
Lm: Inductance type Cm: Capacitance type Sm: Hall type Am: Safety Explosion-proof type Xm: Mimic Linear type Hm: Reed type Ru: Ultrasonic type	N: Three-wire Dc NpN Output P: Three-wire Dc PnP Output L: Two-wire Dc Output : Ac Two-wire Output J: Relay Contact Output Np: NpN+PnP Double Output
Outward appearance code	Output state
□: Cylinder type F□: Angular Colum Type And Plane Installation Type	A: (no) normally Open (no) B: (nc) Normally Close (nc) C: (no-nc) normally Open-Normally Close (no+nc) Mu: Mimic Voltage Mi: Mimic Current Mui: Voltage+Current
Working voltage	Subsidiart functions
30: 6-36VDC 310:5-24VDC 320:12-60VDC 330: 10-30VDC 340:10-55VDC 350:10-60VDC 360: 5-36VDC 20:90-250VAC 210:24-250VAC 220: 380VAC40:12-240VDC/24-240AC 50: Special voltage	T: with aviation connector Y: water proof,oil proof I: special requirement H: high temp resistance R: ring type
Detection distance	Long-distance
01: 1mm 05: 5mm 10: 10mm ......	L: Long-distance

Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.
Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1 . Spacing detection
2 . Stopper detection of grinding machine
3 . Bottle lid detection

4 . Arm location detection of robot

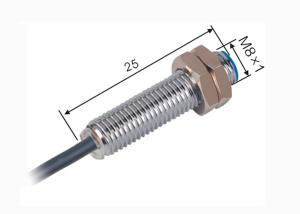

Product Picture

8.2V Metal Small Proximity Switch Explosion Proof 1MM Detection Distance NO NC NO+NC

FAQ

Q: How to order our product ?

A:1). Please tell us the model and quantity and other request you need.

2). We make the PI for you.

3). After you confirm the PI, we arrange the order for you after receiving your payment.

4). After the goods finished, we send the goods out to you and tell you the tracking number.

5). We will track your goods until you receive the goods.

Q: What's your warranty ?

A: Two years

Q: What's your shipment method?

A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.

Q: What's about MOQ?

A: First order MOQ=1pcs

Q: If i want to release order, what's the payment method you accept ?

A: We accept T/T, Paypal, Western union, L/C.

Q: If i want to release order, what's the process?

A: Thanks. You can send inquiry to us by Maoyt or send us by email, we will reply within 24hrs.
